Application Center
The Application Center is focused on testing new manufacturing and technological processes for our customers. LaserTherm invested 1 million EUR in the establishment of this center.
Customers will gain key answers when deciding on an investment in new technology:
1) about product quality
2) about production speed and cycle time
3) about economic returns and operating costs
Laser Cleaning
High-performance pulsed laser TRUMPF TruMicro 7060

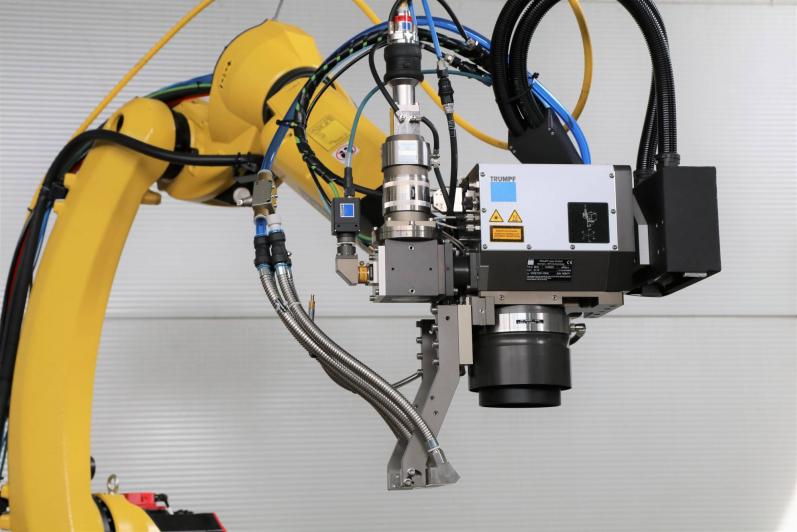

Scanning heads for high-capacity surface cleaning
Cleaning and structuring of steels, Al-alloys, Cu-alloys, and non-metallic materials
All integrated with an industrial robot on a linear track

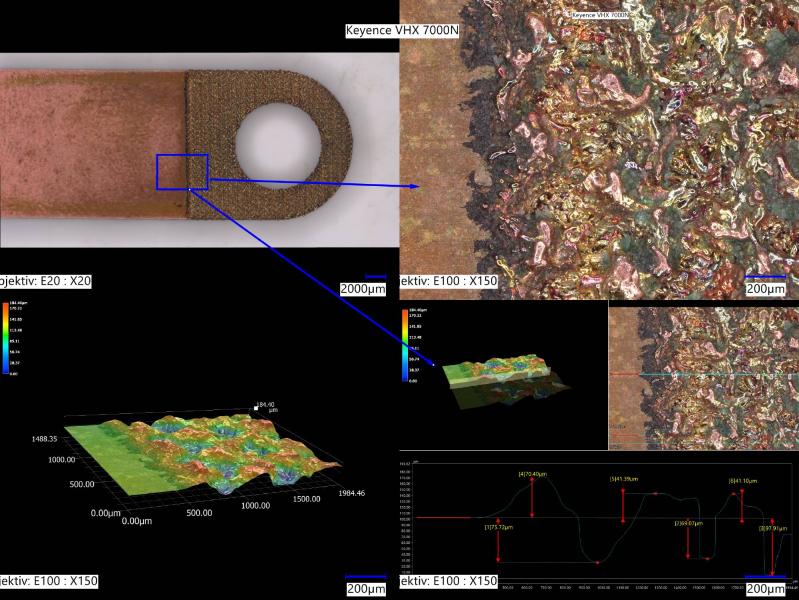

Surface structuring by laser
Laser technology can precisely structure various surfaces of both metallic and non-metallic materials. This modification is used, for example, for:
· increasing the functional surface area of electrodes
· manufacturing an anchor lock before painting
· reducing transitional resistances in conductive joints
· enhancing surface adhesion

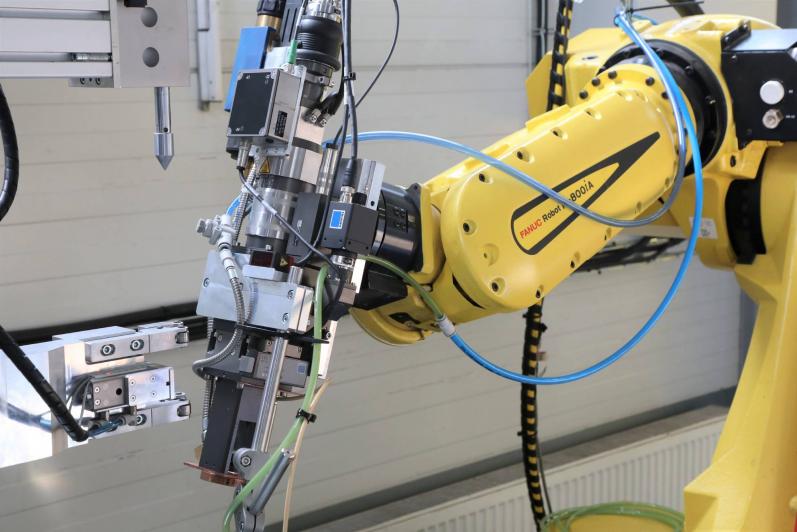

Laser Welding
High-performance disc laser TRUMPF TruDisk 8000
Unique BrightLine laser beam shaping technology
Welding of steels, Al-alloys, Cu-alloys
All integrated with an industrial robot designed for precise laser applications
Laser 3D Cutting
High-performance disc laser TRUMPF TruDisk 8000
Process optics with adaptive Z-axis for a constant distance from the cut material
Designed for processing geometrically complex components
Cutting of steels, Al-alloys, Cu-alloys
All integrated with an industrial robot designed for precise laser applications
Robotic Friction Stir Welding (STIR)
The only workplace for the robotic STIR method in the Czech Republic
Special method for joining Al-alloys and Cu-alloys up to a thickness of 8 mm
Unique properties of the welded joint = no tensile stresses
High-speed laser cladding
Creation of functional and protective layers from a thickness of 0.05 mm
Metallurgical bond formed between the layer and the base material
Efficient alternative to flame spray coatings
Designed for rotary parts: max. diameter 500 mm, max. length 5,000 mm, max. weight 6,000 kg
Do you have questions or want to send an inquiry?
